Description

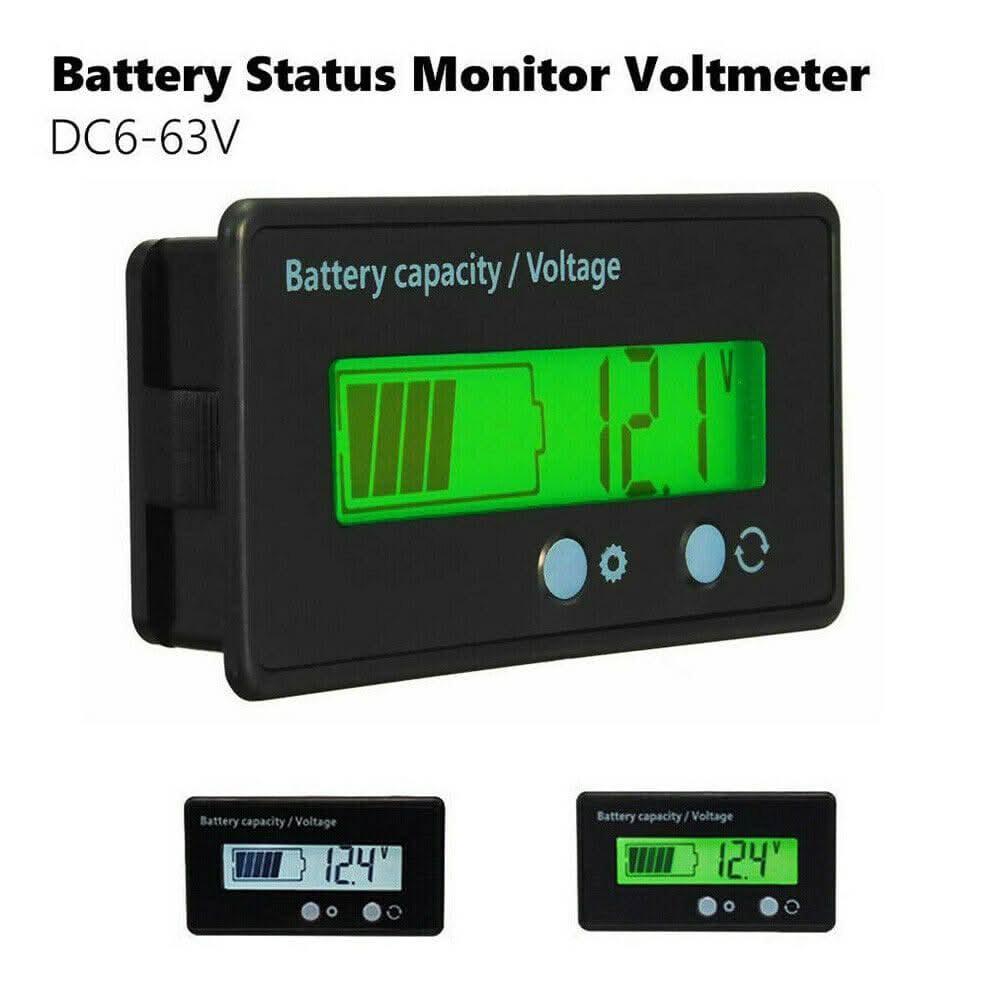

Monitor your battery status at a glance with this compact 6-63V digital battery capacity and voltage tester. Designed to display both battery voltage and estimated remaining capacity, it is ideal for cars, motorcycles, scooters, e-bikes, battery packs, test equipment and other DC-powered applications.

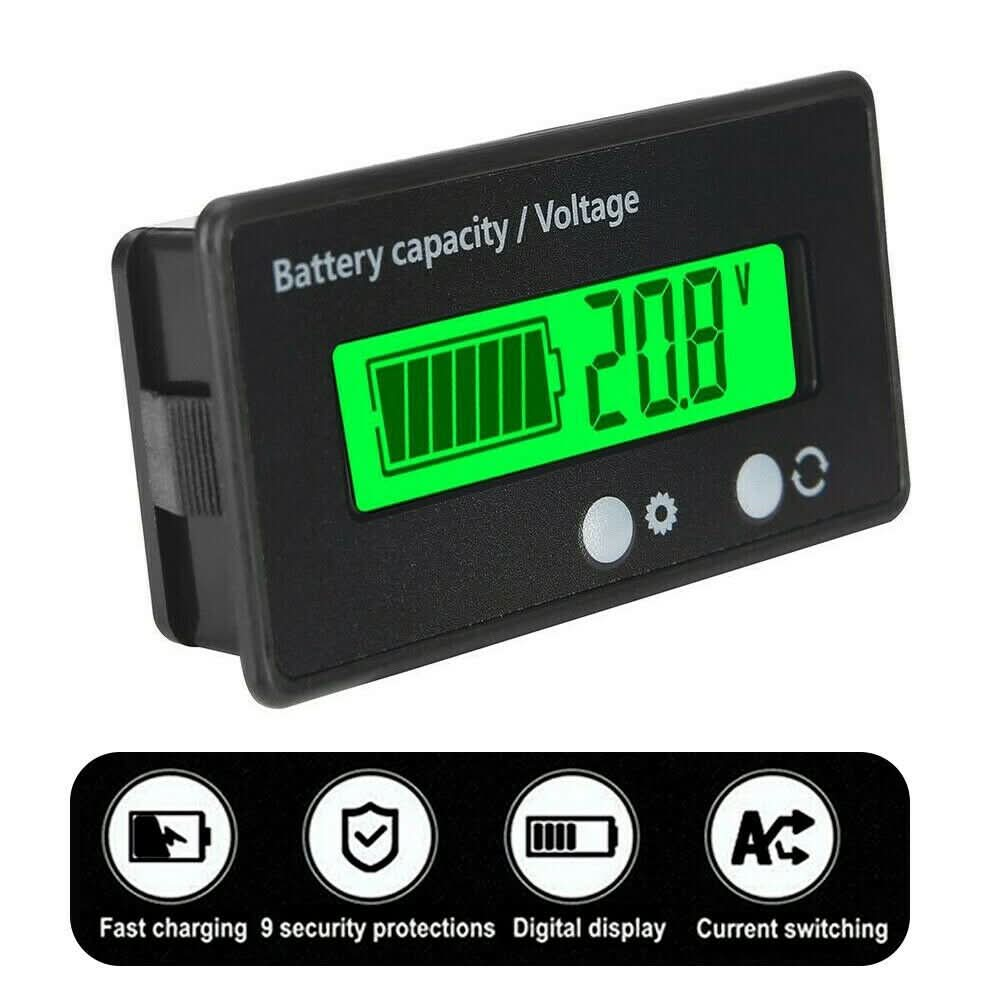

The clear display features a green backlight for easy viewing in low-light environments. A convenient button allows you to switch between capacity percentage, voltage display and screen off.
For improved efficiency, the tester automatically enters sleep mode after approximately 10 seconds, helping minimise power consumption. Built-in reverse polarity protection also helps protect the unit if the wiring is accidentally connected in reverse.
Key Features
- Measures battery voltage and remaining capacity
- Wide 6V-63V operating range
- Displays battery level using percentage and battery icon
- Clear green backlit display

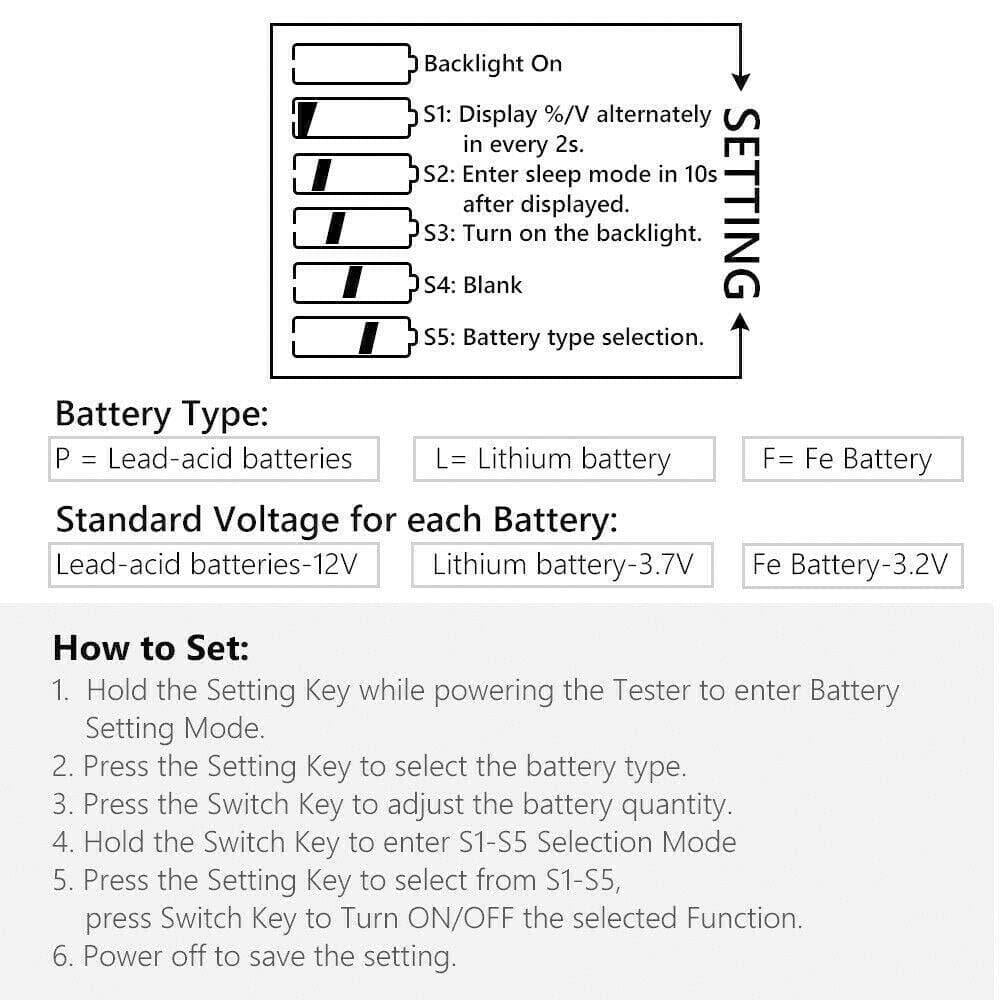

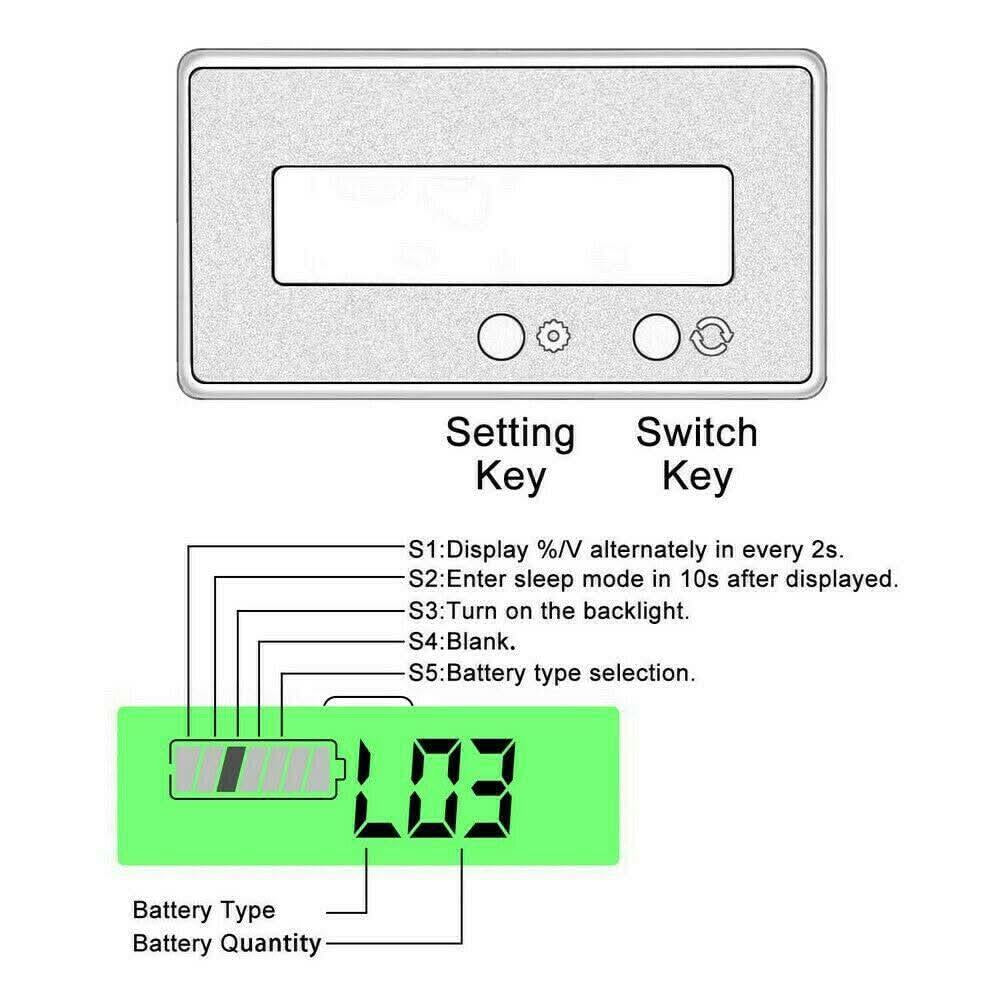

- Switch between voltage, capacity and screen-off modes
- Automatically enters sleep mode after approximately 10 seconds
- Low circuit current consumption of only 5-6mA
- Built-in reverse polarity protection
- Compact panel-mount design

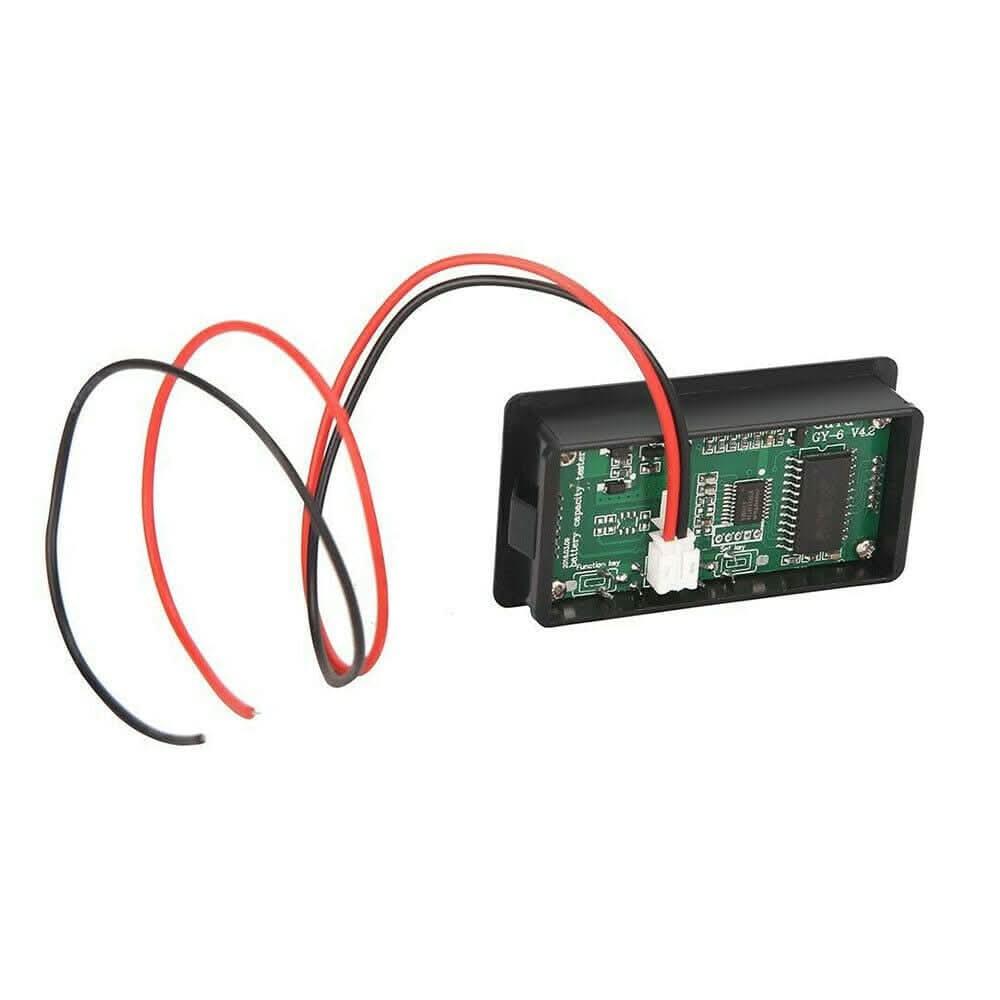

- Includes 30cm connection cable
- Suitable for a wide range of vehicles and battery-powered equipment

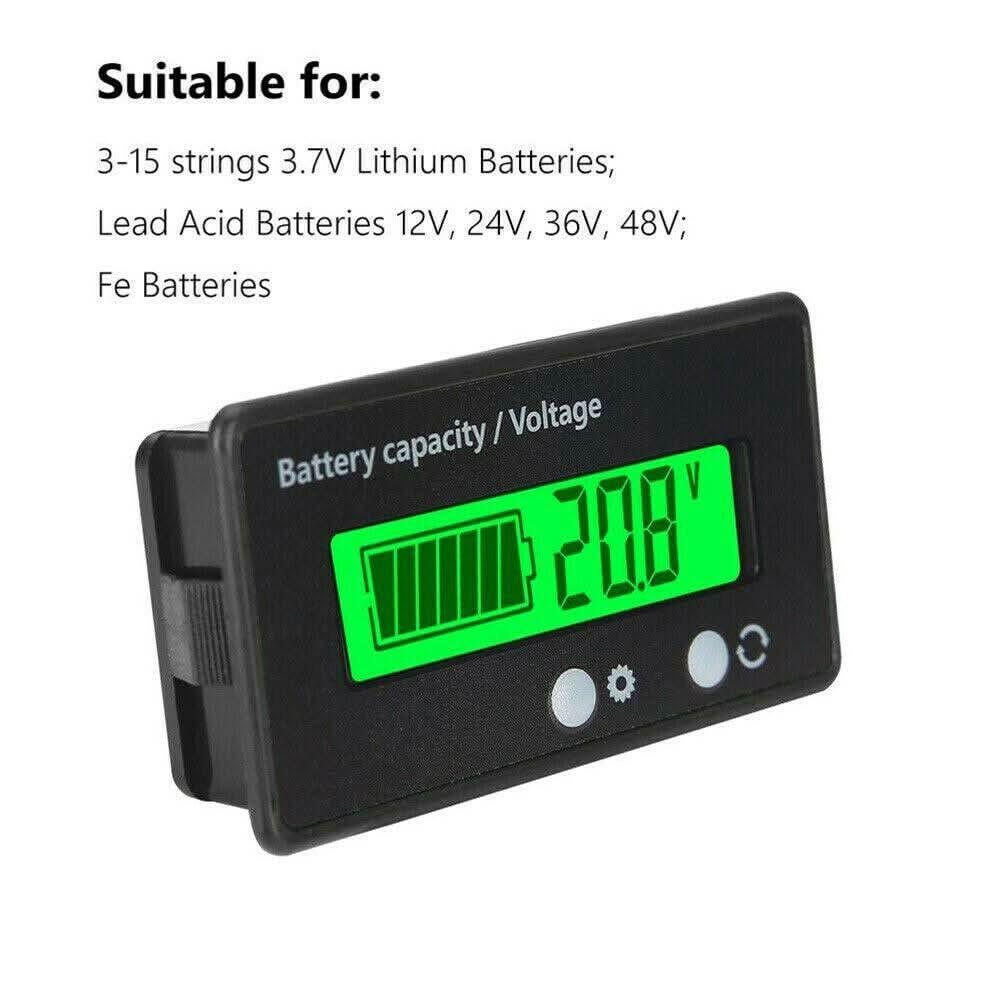

Battery Compatibility
Suitable for selected:
- 3-15 cell 3.7V lithium battery packs
- 12V lead acid batteries
- 24V lead acid batteries
- 36V lead acid batteries
- 48V lead acid batteries
- Compatible Fe / lithium iron battery configurations within the supported voltage range
Always configure and use the meter according to your battery chemistry, cell count and voltage.
Ideal For
- Cars
- Motorcycles
- Scooters
- E-bikes
- Battery packs
- Solar battery systems
- Portable power equipment
- Test equipment
- DIY electrical projects
Specifications
- Product Type: Battery Capacity & Voltage Tester
- Voltage Range: 6-63V
- Display: LCD with green backlight
- Circuit Load Current: 5-6mA
- Colour: Black
- Dimensions: 61.3 × 33.3 × 13.5mm
- Mounting Hole: 58 × 28.1mm
- Cable Length: Approx. 30cm
- Sleep Mode: Approx. 10 seconds
- Functions: Battery percentage, voltage display, screen off
Important Note
The displayed battery percentage is an estimated capacity based on battery voltage and may vary depending on battery chemistry, condition, load and configuration. Confirm that your battery voltage and chemistry are compatible before installation.
Package Includes
- 1 × Battery Capacity & Voltage Tester
- 1 × Connection Cable
FAQs
Q1: What voltage range does this battery tester support?
It supports battery systems operating between 6V and 63V.
Q2: Does it show both voltage and battery percentage?
Yes. The display can show battery voltage as well as an estimated remaining capacity percentage and battery icon.
Q3: Which batteries can it be used with?
It is suitable for compatible lithium battery packs and 12V, 24V, 36V and 48V lead acid battery systems within its 6-63V operating range.
Q4: What happens if I accidentally connect the wires backwards?
The tester features reverse polarity protection, helping protect the unit from accidental reverse connection.
