Description

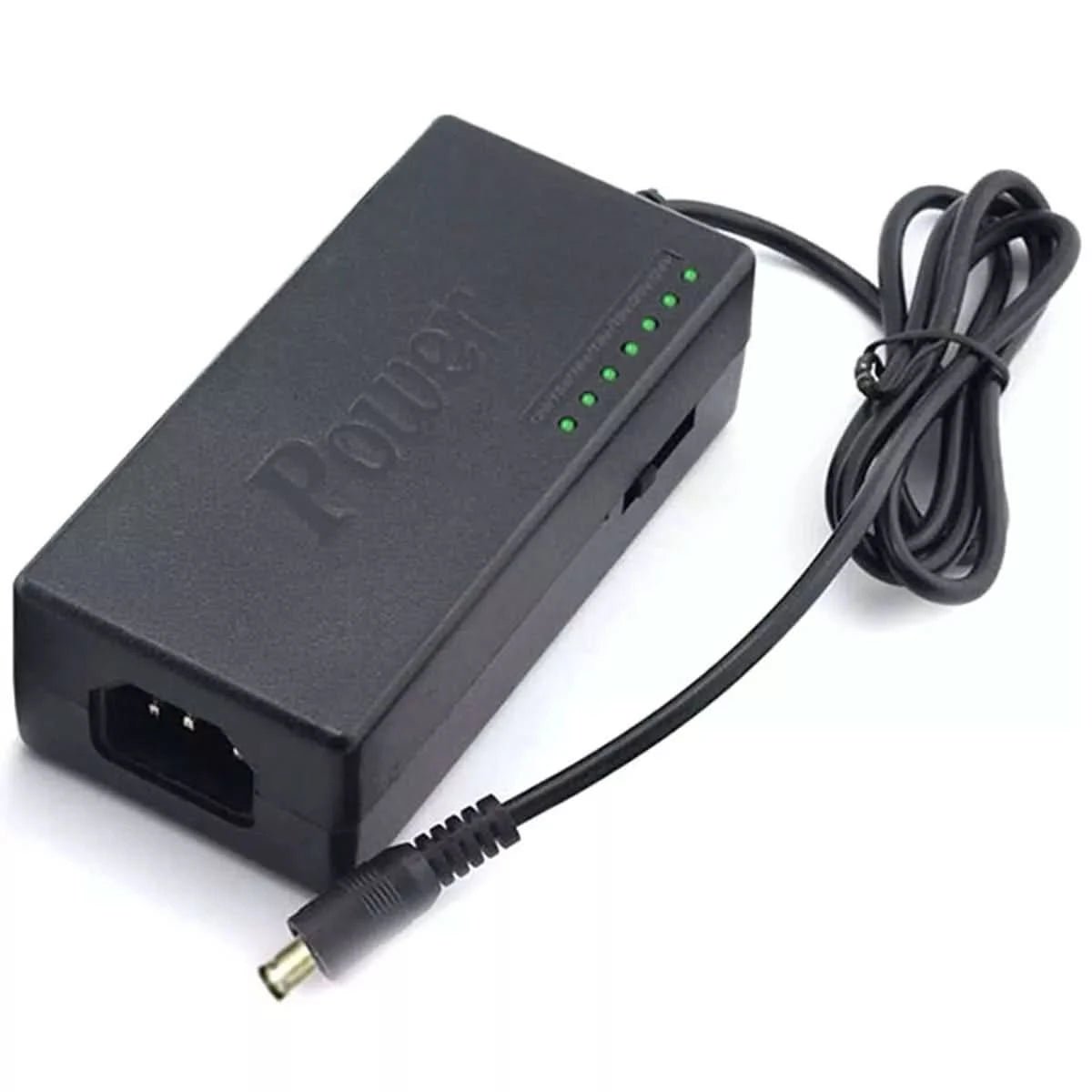

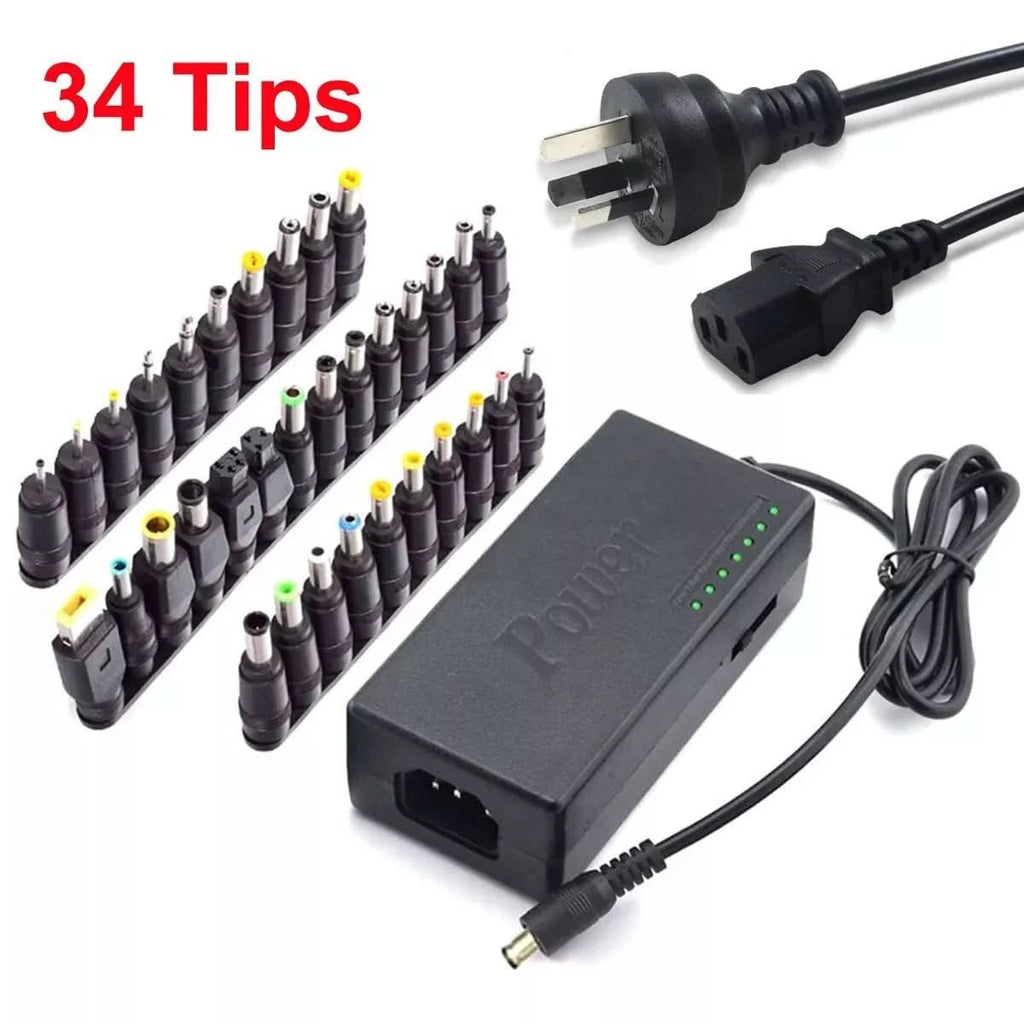

Power nearly any laptop or notebook with this 96W Universal Laptop Charger, designed with 34 interchangeable connectors and adjustable voltage (12V–24V) for maximum compatibility. Perfect as a replacement or backup charger, it supports leading brands including HP, Dell, Lenovo, Acer, Asus, Toshiba, Sony, Samsung, Compaq, IBM, and more.
Engineered with high-efficiency circuitry, it delivers stable power while minimizing energy use. Built-in over-voltage, over-current, and short-circuit protection ensures safe charging, while the power LED indicator confirms reliable operation. Ideal for home, office, and travel use.
Key Features:
-

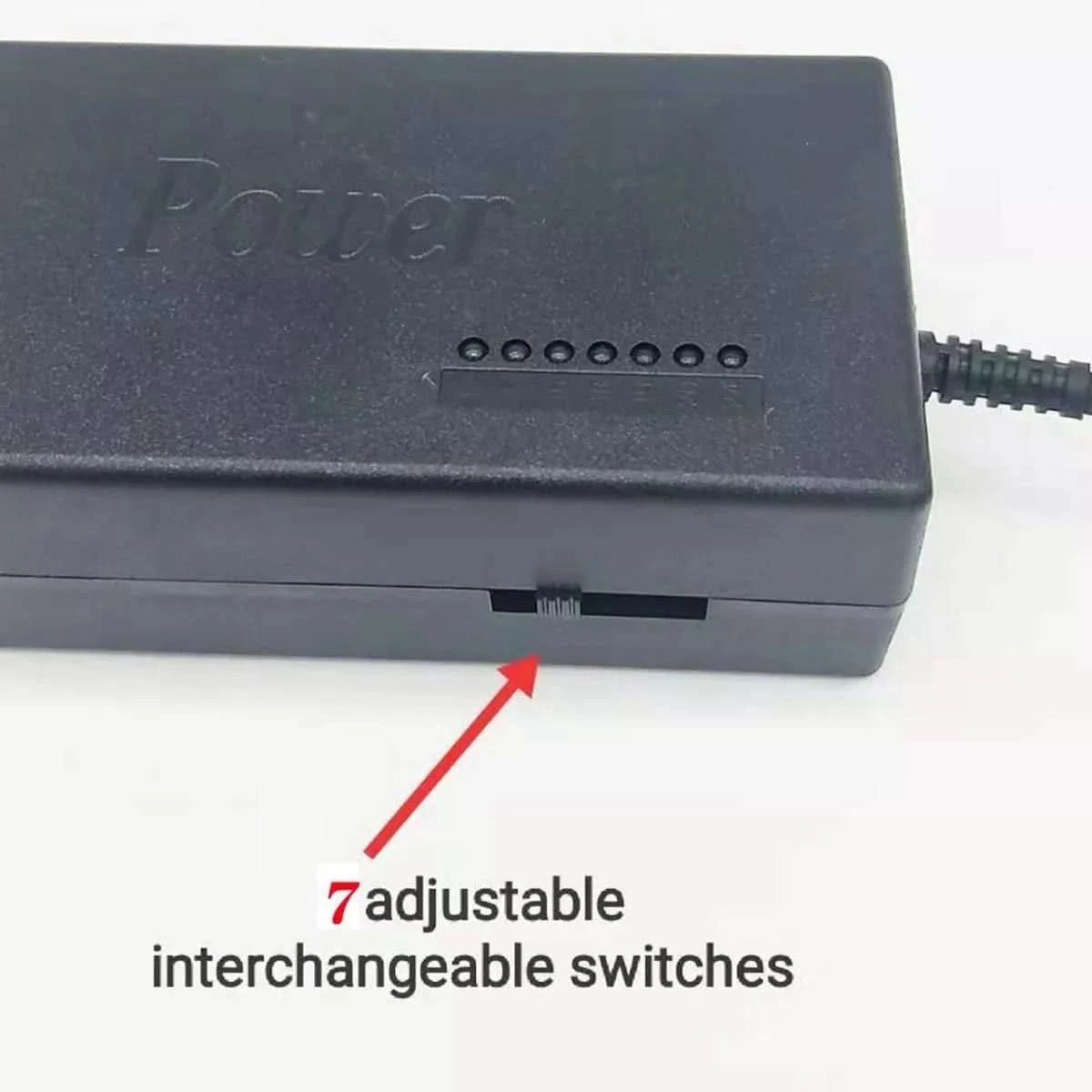

96W output with adjustable voltage (12V/15V/16V/18V/19V/20V/24V)
-

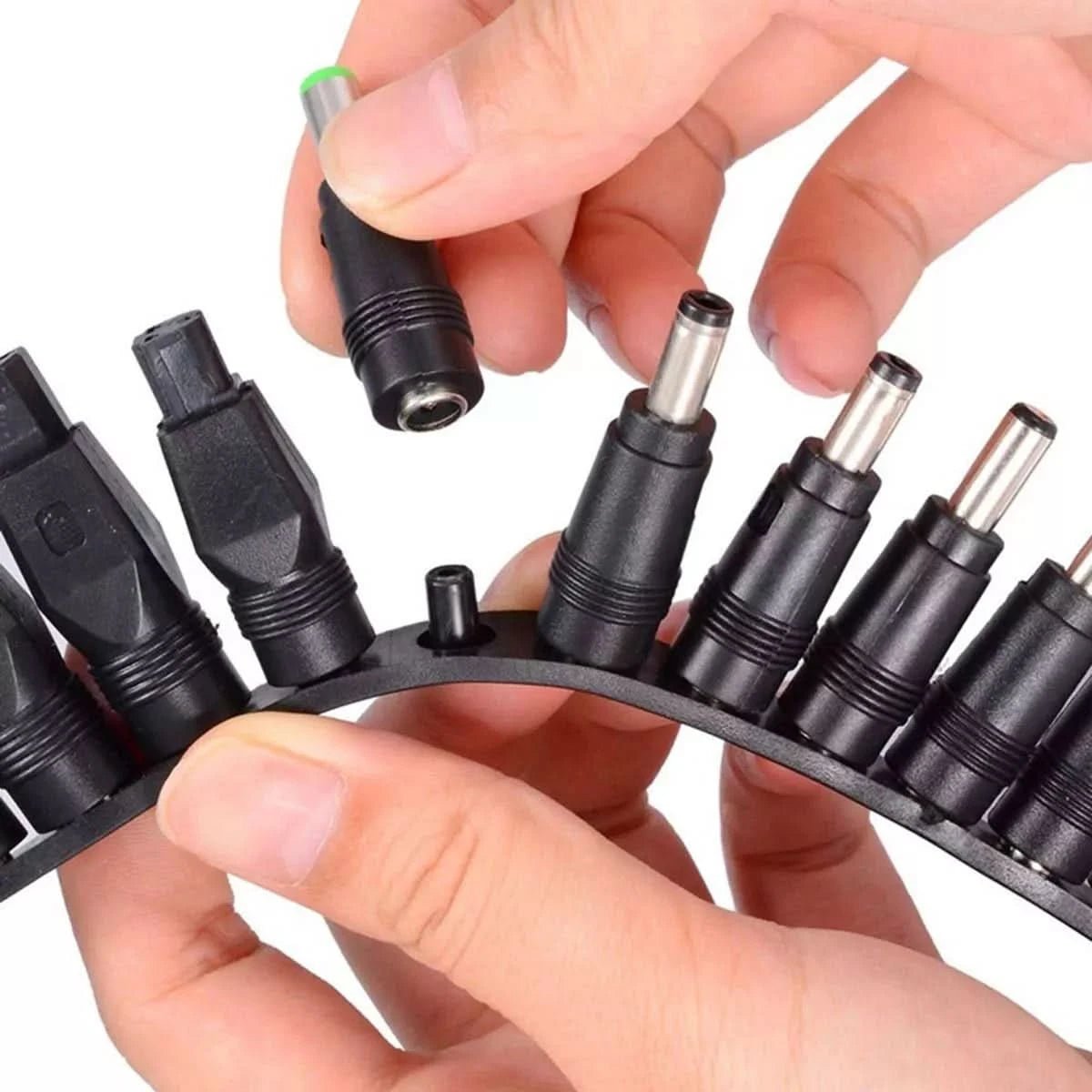

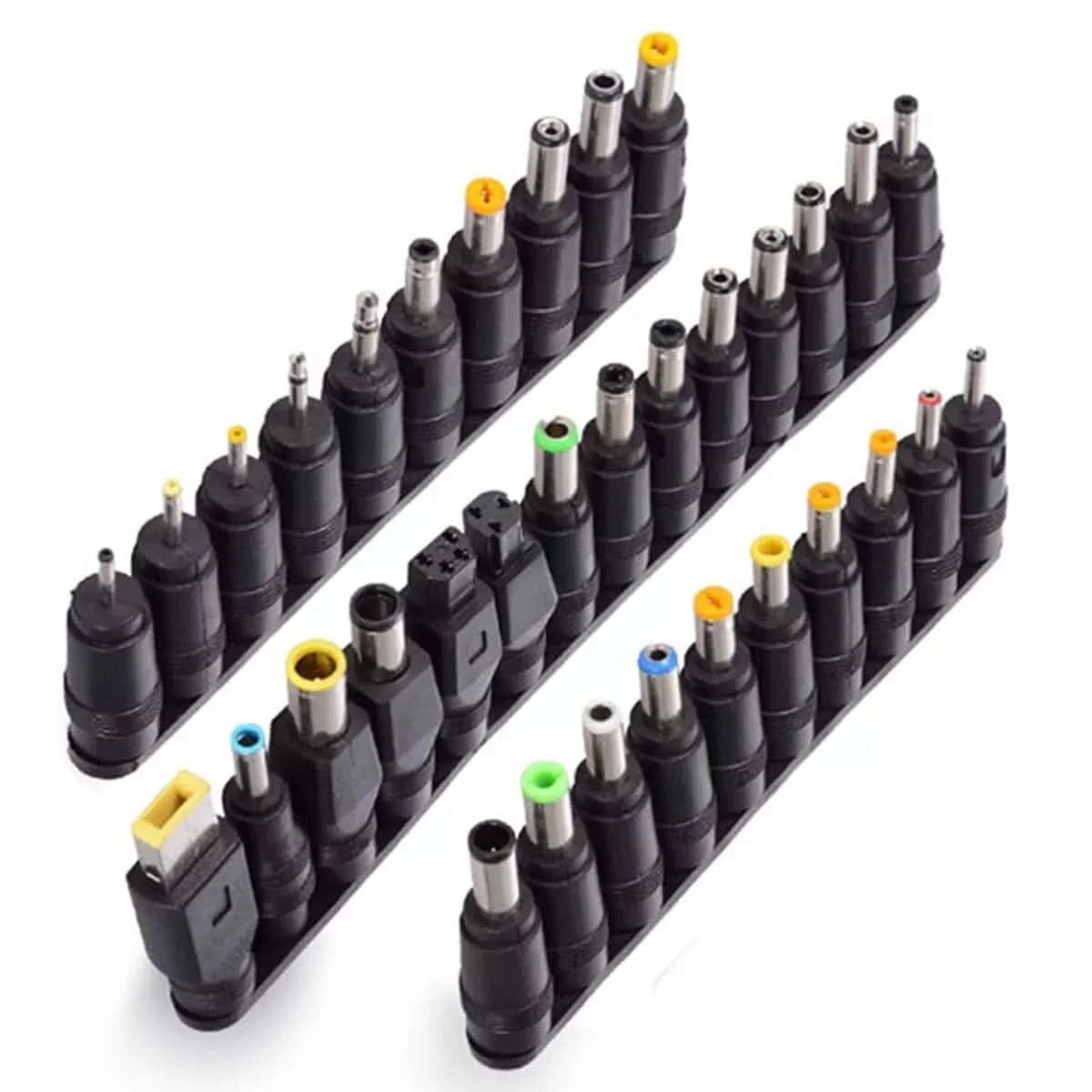

34 connectors for wide compatibility across laptop brands
-
Built-in safety protections and LED indicator
-
Input: 100–240V, 50/60Hz | AU Plug

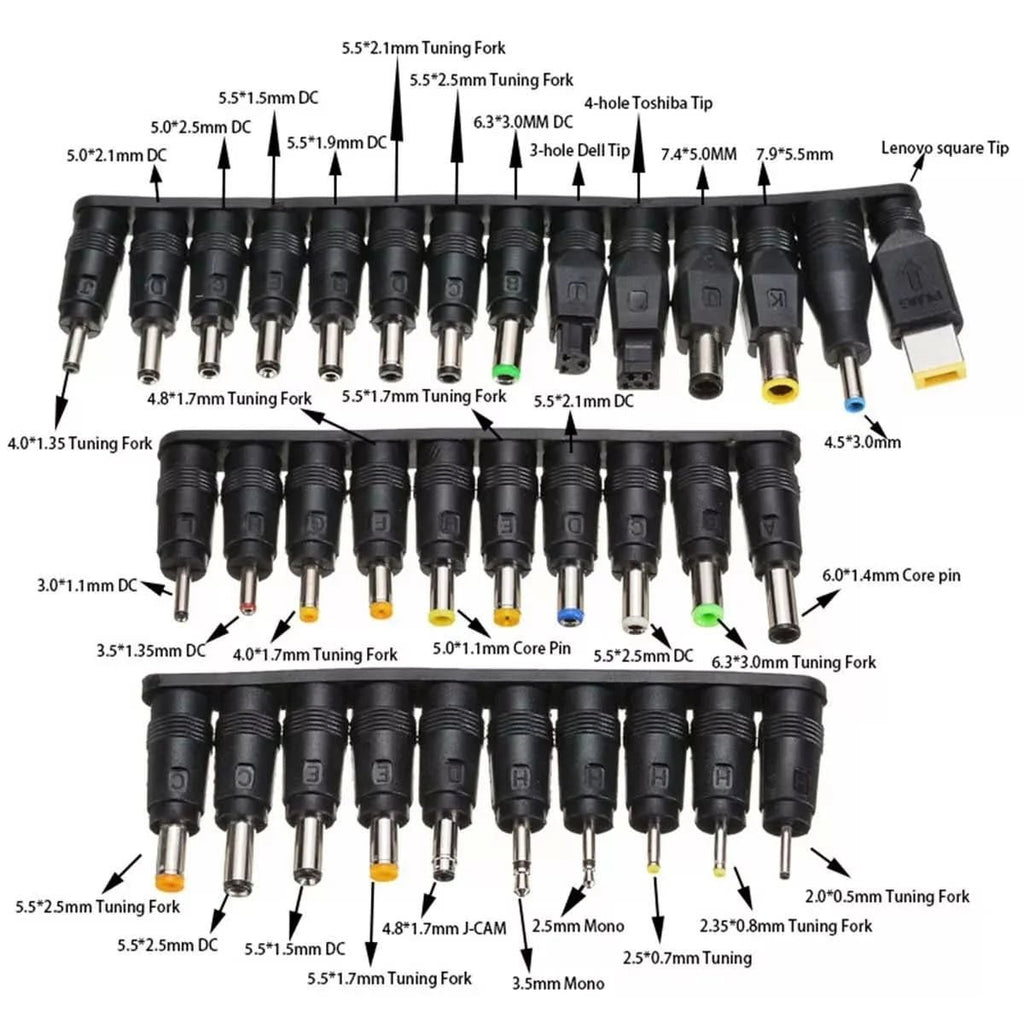

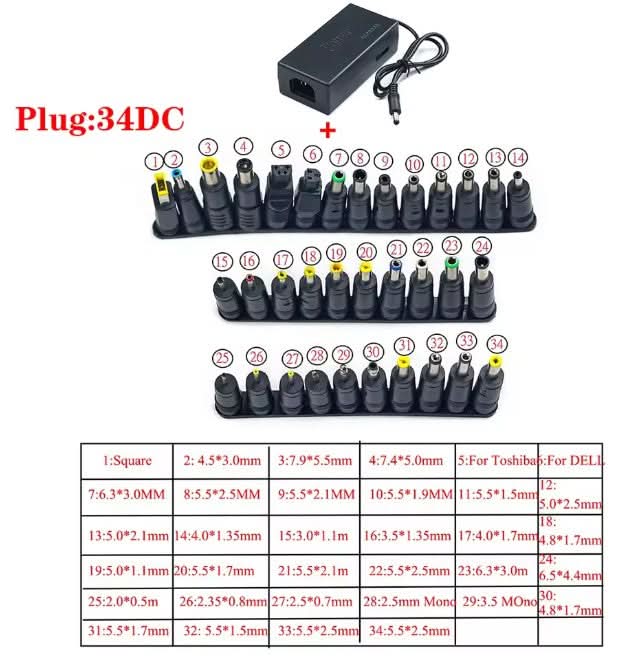

Universal Laptop Charger – 34 Pin Connector List
| # | Pin Size / Type | Notes / Label in Image |
|---|---|---|
| 1 | 3.0 × 1.1mm DC | Small DC tip |
| 2 | 3.5 × 1.35mm DC | Small DC tip |
| 3 | 4.0 × 1.35mm Tuning Fork | Fork style |
| 4 | 4.0 × 1.7mm Tuning Fork | Fork style |
| 5 | 4.5 × 3.0mm | Common HP/Lenovo |
| 6 | 4.8 × 1.7mm Tuning Fork | Fork style |
| 7 | 4.8 × 1.7mm J-CAM | Camera style |
| 8 | 5.0 × 1.1mm Core Pin | Core type |
| 9 | 5.0 × 2.1mm DC | Barrel type |
| 10 | 5.0 × 2.5mm DC | Barrel type |
| 11 | 5.5 × 1.5mm DC | Barrel type |
| 12 | 5.5 × 1.7mm DC | Barrel type |
| 13 | 5.5 × 1.7mm Tuning Fork | Fork style |
| 14 | 5.5 × 1.9mm DC | Barrel type |
| 15 | 5.5 × 2.1mm DC | Barrel type |
| 16 | 5.5 × 2.1mm Tuning Fork | Fork style |
| 17 | 5.5 × 2.5mm DC | Barrel type |
| 18 | 5.5 × 2.5mm Tuning Fork | Fork style |
| 19 | 6.0 × 1.4mm Core Pin | Core type |
| 20 | 6.3 × 3.0mm DC | Barrel type |
| 21 | 6.3 × 3.0mm Tuning Fork | Fork style |
| 22 | 7.4 × 5.0mm | Common HP/Dell |
| 23 | 7.9 × 5.5mm | Lenovo tip |
| 24 | 2.0 × 0.5mm Tuning Fork | Very small |
| 25 | 2.35 × 0.8mm Tuning Fork | Very small |
| 26 | 2.5 × 0.7mm Tuning Fork | Small DC |
| 27 | 2.5mm Mono | Mono tip |
| 28 | 3.5mm Mono | Mono tip |
| 29 | Square Tip | Lenovo square type |
| 30 | 4-hole Connector | Toshiba/Dell |
| 31 | 3-hole Connector | Special 3-pin type |
| 32 | 5.5 × 1.7mm DC (alt version) | Variant barrel |
| 33 | 5.5 × 2.5mm DC (alt version) | Variant barrel |
| 34 | 5.5 × 2.5mm Tuning Fork | Final fork variant |
FAQs
Q1: Is this charger compatible with HP and Dell laptops?
Yes, it supports HP, Dell, Lenovo, Acer, Asus, Toshiba, Sony, Samsung, and many more.
Q2: Can I adjust the voltage output?
Yes, the charger allows adjustable output from 12V to 24V to suit different devices.
Q3: Does it include all 34 connectors in the package?
Yes, you receive the full set of 34 interchangeable tips for universal compatibility.
Q4: Is this charger safe to use long-term?
Absolutely. It features over-voltage, over-current, and short-circuit protection with an LED indicator for safety.
