Quick answer: Dyson pulsing usually points to restricted airflow from a blockage or dirty filter. Sudden shutdown under load can also indicate a tired battery. Check the bin, airway, cleaner head and completely dry filters before replacing electrical parts.
Turn the vacuum off and disconnect it from charging. Empty the bin, then inspect the head, wand, inlet and cyclone opening. Hair, thread and compacted dust can create an intermittent obstruction that causes the motor to surge.
Symptom guide
| Symptom | Inspect first | Useful test |
|---|---|---|
| Rapid pulsing | Filter and airway | Test without wand and head |
| Weak suction | Bin seals, filter, blockage | Check suction at main body |
| Stops under load | Battery, jammed head, heat | Retry on normal mode after cleaning |
| Will not charge | Outlet, charger, connection | Inspect cable and plugs |
Isolate each component
Run the main body briefly without the wand, then add the wand and cleaner head one at a time. If pulsing begins only when a component is attached, the restriction is likely in that component. Remove wrapped hair from the brush bar and check that it rotates freely.
Wash and dry filters correctly
Use only the cleaning procedure specified for your model. After washing, allow the filter to dry completely before refitting. A damp or misaligned filter can restrict airflow and risk damage. Replace a filter that remains clogged, torn, warped or unable to seal.
Evaluate the battery last
A worn battery can show sharply reduced runtime, abrupt shutdown under load or unreliable charging. Compare performance in normal mode with the same attachment. Maximum mode naturally drains a pack much faster and should not be the only test.
Relevant OfficeCatch parts
- Dyson filters, heads and accessories

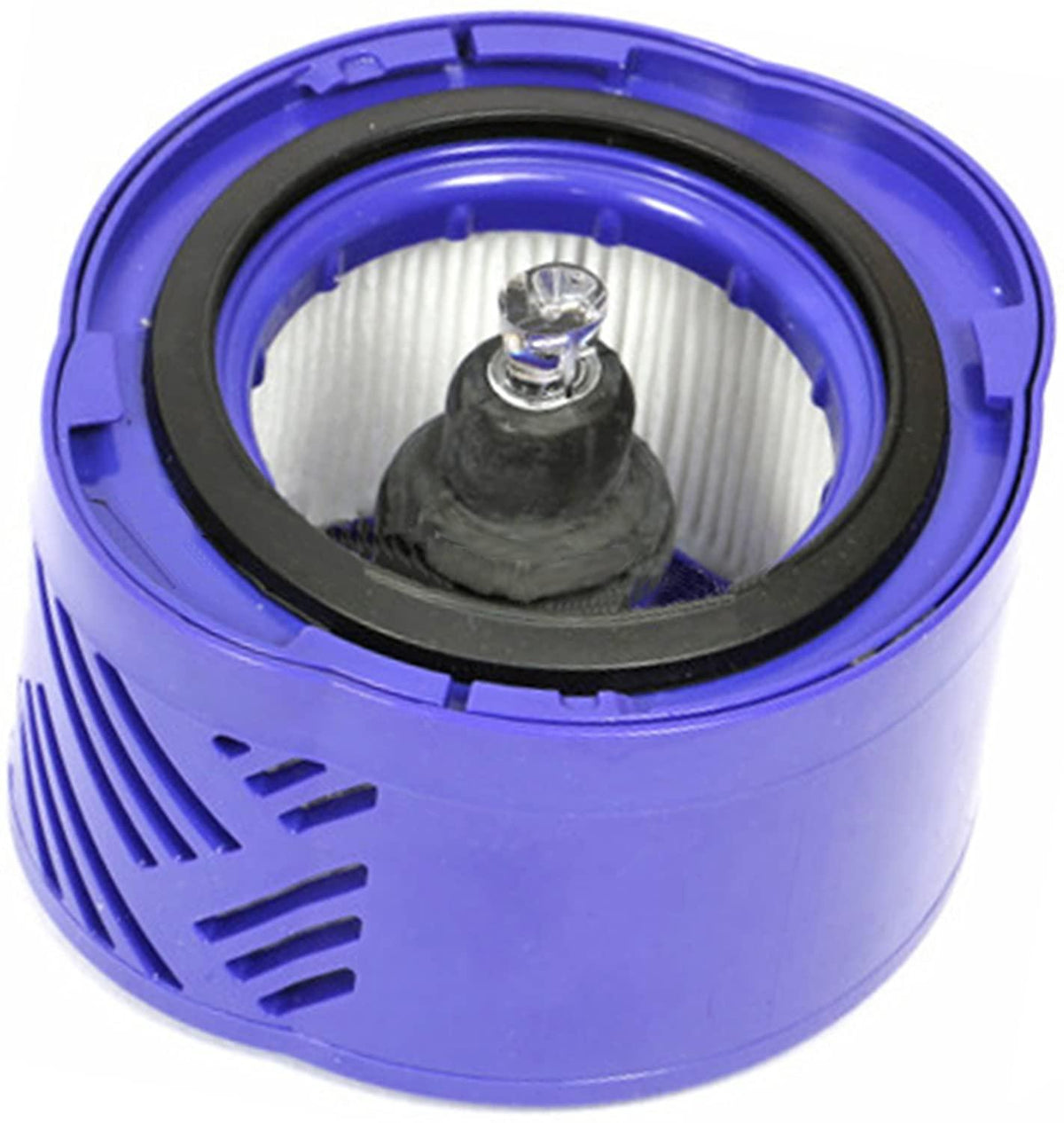

- Dyson V6 HEPA filter

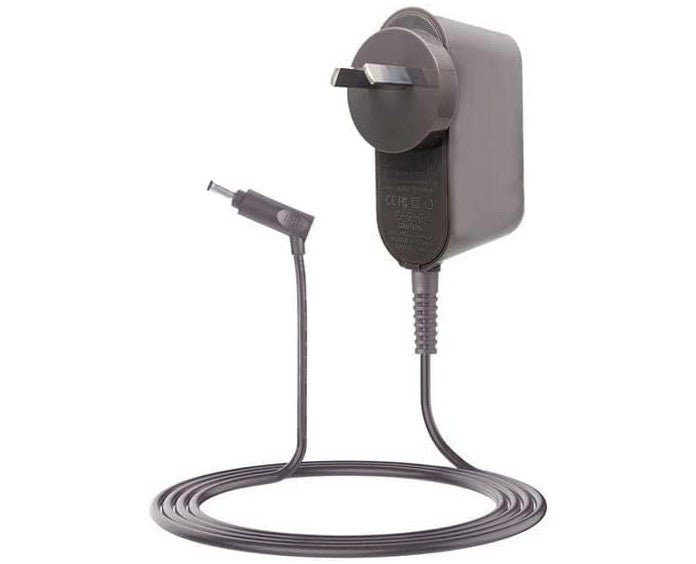

- Dyson V6, V7 and V8 charger

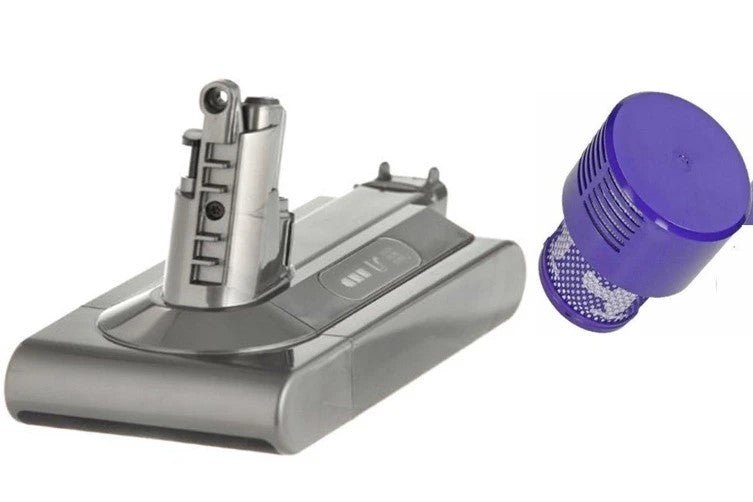

- Dyson V10 battery and filter combo
FAQs
Can a wet filter cause cutting out?
Yes. It can restrict airflow and risk damage. Refit only when completely dry.
Why does it stop only on maximum mode?
Maximum mode applies the greatest load and can expose battery wear, but also has naturally short runtime.
Should I replace the battery first?
No. Clear blockages and check filters and the charger before replacing parts.
