Quick answer: Use the full model number on the indoor air-conditioning unit as the primary reference, then compare the original remote number and required functions. Brand alone is not enough because one manufacturer can use multiple infrared command sets.
The indoor-unit label is usually on the side, underside or behind the user-accessible filter cover. Turn the unit off before opening a cover and do not remove electrical panels.
Details to record
| Detail | Example | Why it matters |
|---|---|---|
| Indoor-unit model | MSZ…, SRR60ZMS | Primary system match |
| Remote number | RLA502A700L/R | Matches commands and layout |
| Functions | Heat, cool, dry, swing, timer | Ensures required buttons are present |

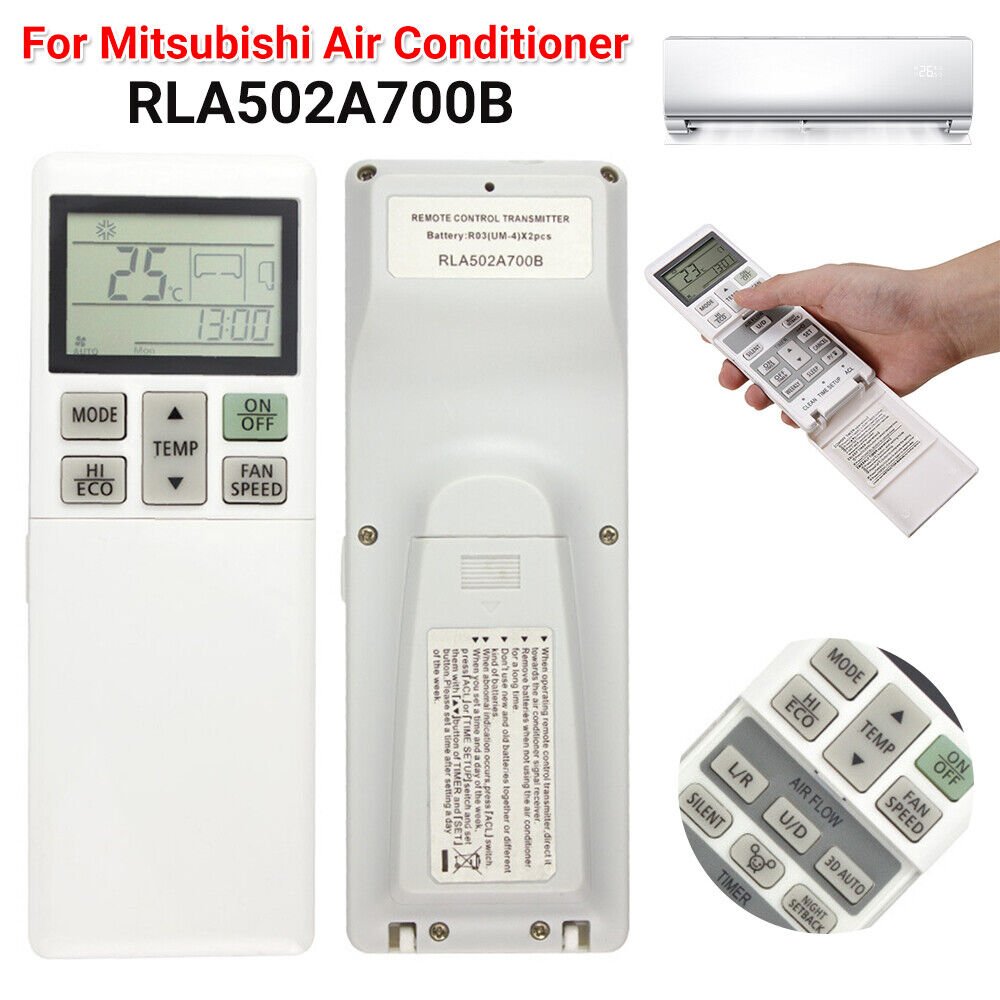

Compare the original remote
If the old remote is available, check its rear label and battery compartment. Photograph the display and buttons. Similar cases can contain different electronics, so printed references are more reliable than appearance.
Test basic operation
Many model-specific infrared replacements need no programming. Insert fresh batteries, point at the indoor receiver and test power, mode, temperature and fan. If the display works but the unit does not respond, check whether the air conditioner has power and whether its manual/emergency button operates it.
Shop AC remotes
FAQs
Can a universal AC remote work with any unit?
No. It supports a selected code library, not every model or feature.
Should I use the outdoor-unit model?
Record both if available, but match the indoor unit and original remote first.
Does a model-specific remote need programming?
Many work immediately; universal remotes often require code setup.
